ROVLe Bundle Mark V

$4,790.00

SKU: ROVL-MKV-TX-RX

Shipping Lead Time: around 2 weeks

The ROVL MK V (network-enabled ROV Locator) is a newer version of Cerulean’s subsea positioning ecosystem that uses Ethernet networking to synchronize timing between the topside receiver and the subsea transmitter.

Description

Unlike the other ROVL variants that use GNSS time (Mk II) or acoustic duplex pinging (Mk III), the MK V synchronizes timing over the vehicle’s Ethernet network. This translates into: no reliance on GPS visibility for clock sync, greater synchronization reliability than acoustic methods, and reduced clock drift compared with timed GNSS sync. The ROVL MK V also removes GNSS timing dependency and acoustic overhead, resulting in higher update rates of 1–5 Hz.

Networking & Integration

The ROVL MK V is designed for straightforward integration into modern network-based underwater systems. Compatible with BlueOS-based vehicles, allowing deployment using standard Ethernet networking. The system integrates alongside other Cerulean sensors on Raspberry Pi or similar onboard computers. Position data can be interfaced with MAVLink-based navigation and vehicle control systems, supporting vehicle tracking, navigation feedback, and autonomous workflows. The ROVL MK V operates alongside sonars, DVLs, cameras, and onboard computers on a shared network.

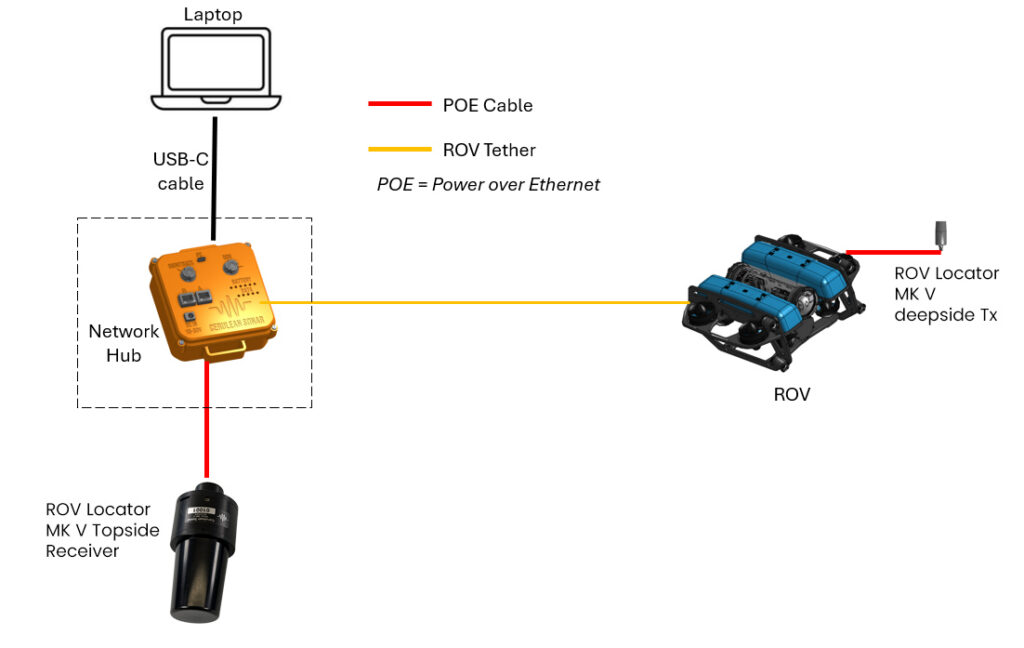

Ethernet Connection to the ROVL MK V

The ROV Locator Mk V uses network-based synchronization between the topside unit and the ROV transmitter over a common Ethernet connection to achieve accurate, drift-free timing and ranging. For this to work reliably, you need a network switch-like device that connects the ROV tether Ethernet port, the topside receiver, and the PC. The user manual explains several ways to connect your ROVL MK V topside Receiver. For the easiest installation, we recommend the Network Hub, which makes the ROV Locator Mk V’s Ethernet-based timing and data exchange simple while providing power to the device.

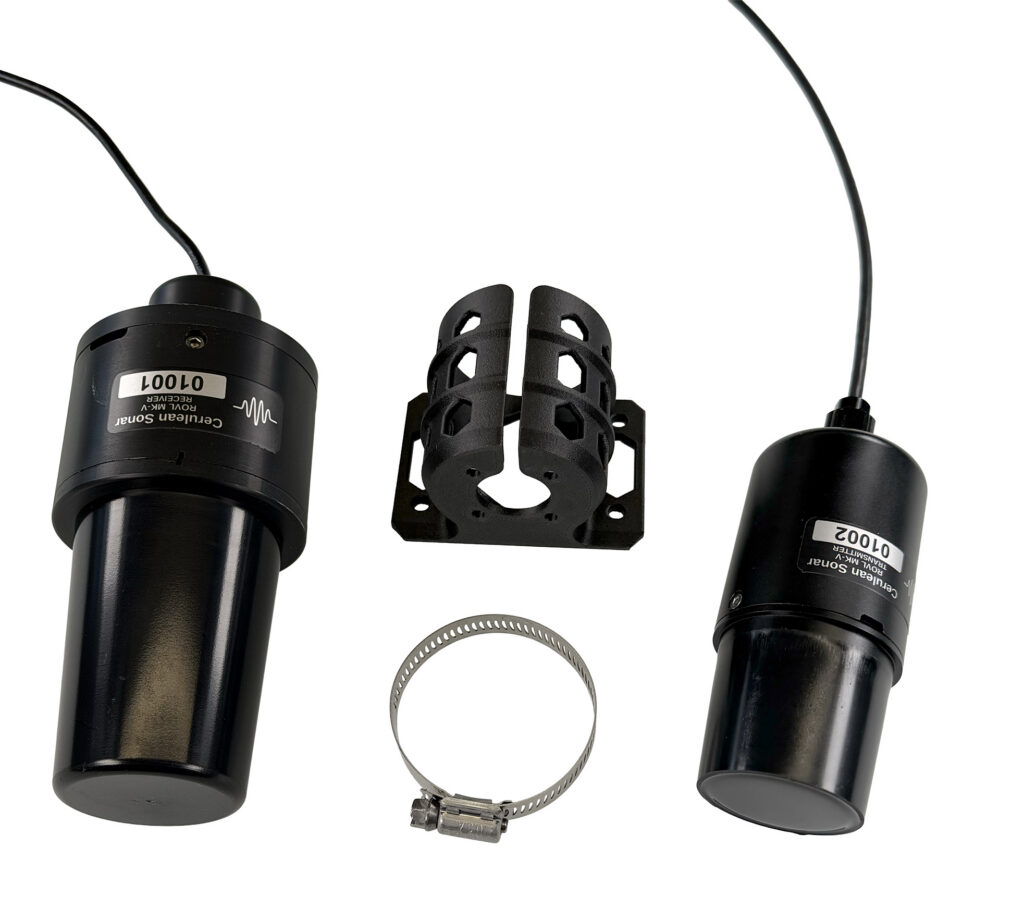

What’s in the Box

1 Transmitter and 1 Receiver
1 Hose clamp mount
1 Bracket

Specifications

Please refer to the product specification linked below
