Omniscan 3D Upgrade Kit
$4,990.00
SKU:

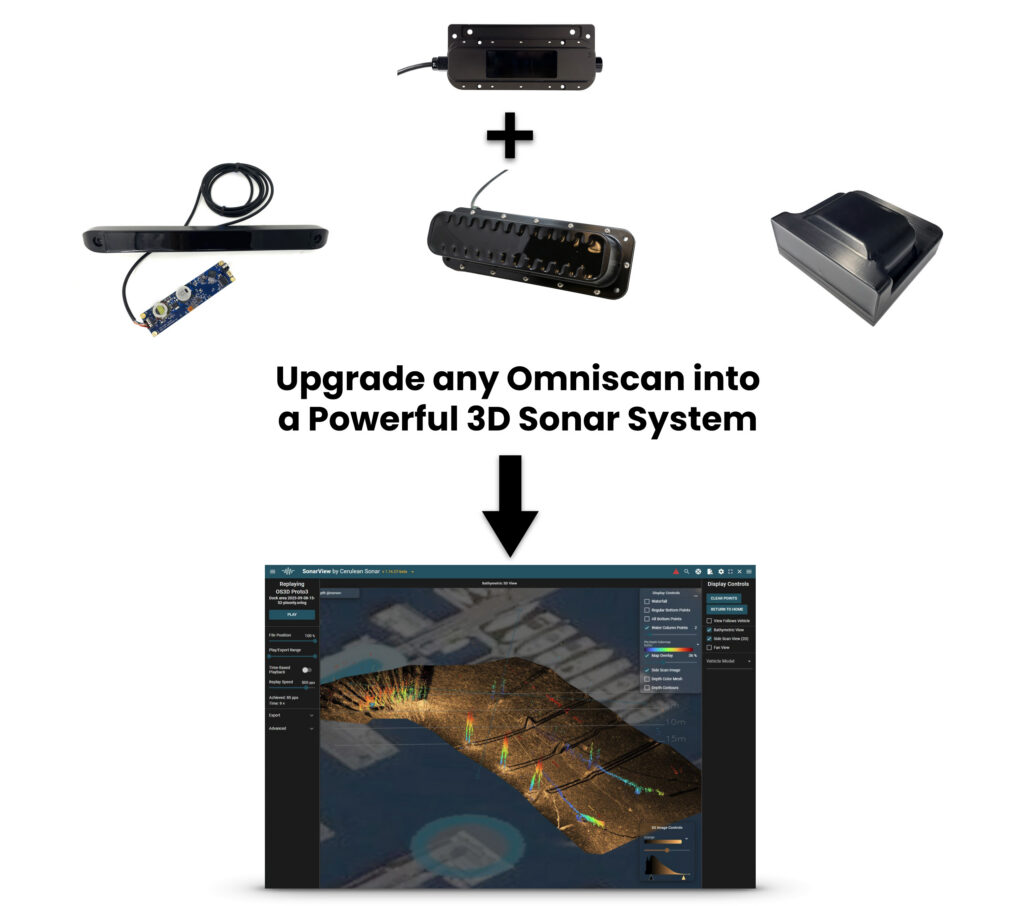

Transform your existing Omniscan into a 3D sonar by adding the Omniscan 3D Upgrade Kit—compatible with the Omniscan 450 SS, SS-BB (BlueBoat), Omniscan FS, and Omniscan Compact.
The Omniscan 3D by Cerulean Sonar is an advanced underwater imaging system that bridges the gap between side-scan sonar and multibeam echo sounders. Operating at 450 kHz, it utilizes a 16-channel receive array to calculate vertical angles for every target, generating high-resolution 3D point clouds in real time.
Unlock 3D capabilities on your Omniscan with the Omniscan 3D Upgrade Kit.
Real-Time 3D Vision Underwater
The Omniscan 3D Upgrade Kit introduces a new level of underwater perception to your Omniscan sonar, delivering dense, real-time 3D point cloud imaging in a compact, modular sonar system—at an unprecedented price point.
Designed for inspection, mapping, and navigation, it enables operators and autonomous platforms to understand complex underwater environments with clarity and precision—even in zero-visibility conditions. Built on Cerulean’s proven Omniscan technology, the system combines high-resolution imaging with intuitive operation, transforming how underwater data is captured and interpreted.
Available with native support for BlueOS-based vehicles, or for advanced integrators with sufficient technical expertise to configure networking and deploy a Docker container on a compatible Linux host.
Intuitive Operator Control
Traditional imaging sonars rely on mechanical scanning to slowly build an image of the environment. The Omniscan takes a different approach—scanning is driven by vehicle motion and processed in real time by Cerulean’s SonarView software. When you add the Omniscan 3D Upgrade Kit to your Omniscan, as the vehicle moves, SonarView dynamically constructs a dense 3D representation of the environment, allowing operators to instantly focus on areas of interest. The result is precise spatial awareness and detailed volumetric imaging, even in low-visibility conditions.
See Structure. Understand Space
Traditional sonars show echoes. The Omniscan when updated with the Omniscan 3D Upgrade Kit, reveals structure.Using a multi-element receive array and motion-based reconstruction, the system generates detailed volumetric sonar data, enabling operators to visualize underwater scenes in true 3D. Structures, terrain, and objects appear with spatial depth, improving interpretation, measurement, and situational awareness.* Real-time 3D point-cloud generation* Detailed volumetric imaging in low or zero visibility* Improved object detection and spatial understanding* Ideal for inspection, mapping, and navigation workflows
Designed for Real-World Operations
The Omniscan, along with the Omniscan 3D Upgrade Kit, is engineered for reliability, flexibility, and seamless vehicle integration. Its modular architecture separates transmit, receive, and processing components, allowing it to adapt to a wide range of ROV and AUV platforms—from compact inspection vehicles to advanced autonomous systems. The system works seamlessly with Cerulean’s SonarView software, enabling real-time visualization, recording, and post-mission analysis. Designed with system integrators in mind, the Omniscan 3D 450 SS provides a compact, Ethernet-based interface for straightforward deployment into any vehicle platform.
High-Density Data. Real-Time Insight
The Omniscan 3D captures dense volumetric sonar information suitable for:
- Structural inspection and infrastructure assessment
- Subsea mapping and terrain modeling
- Object detection and identification
- Navigation and spatial awareness
- Survey and reconstruction workflows
What’s in the Box
The Omniscan 3D 450 SS is delivered as a complete, integration-ready system with all essential hardware required for installation and operation.
- Omniscan 3D 450 RX16 Receive Array with removable Omniscan 450 SS adapter
- Omniscan 450 Electronics Module* Ethernet + power interface cable (JST-GH)
- JST-GH to RJ45 adapter(s)
- JST-GH interconnect adapter and jumper* Penetrator O-ring and retaining nut
Omniscan 3D Specifications
| OS3D 450 SS | OS3D RX16 | |
|---|---|---|
| Price | $7480 | $4990 |
| Frequency (nominal) | 450 kHz | 450 kHz |
| Side scan beam width (2 way) | 0.5 deg | |
| Point cloud along track beam width (1 way TX beam) | 0.8 deg | lesser of TX beam width or 3.4 degees |
| Cross track angle resolution (source) | < 1 deg (angle of arrival) | < 1 deg (angle of arrival) |
| Cross Track (vertical) beam width (each side) | TX: 90 deg (nominal @-10dB) | |
| Max range 2D side scan | 150m slant range per side | |
| Max range 3D point cloud | 100m slant range per side | |
| Range Resolution | up to 1/1000th of range | up to 1/1000th of range |
| Number of RX array elements | 16 | 16 |
| Maximum ping rate | 20 Hz | 20 Hz |
| Point cloud data | angle, time of flight, relative amplitude | angle, time of flight, relative amplitude |
| IMU sensors | pitch and roll | pitch and roll |
| Timing synchronization | direct sync to ntp server | direct sync to ntp server |
| Power | 10-30V, 15 watts max (pinging) | 10-30V, 5W typical |
| Data interface | 100BaseT Ethernet | 100BaseT Ethernet |
| PCBA housing | separate PCBA must be housed in vehicle water tight enclosure | PCBA enclosed in RX16 module |
| Electrical connection | PCBA has 3 position transducer interface, 4 pin JST for Ethernet interface, 2 pin JST for power. | single cable w/4 pin JST for Ethernet data + 2 wires for power and ground |
| Recomended mounting angle | 20-30 degrees downward from horizontal | mount parallel to transmit transducer |
| Max operating depth | 300m | 300m |
| Weight in air | 881g | 486g |
| Weight in water | 350g | 200g |
