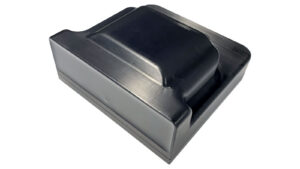

Omniscan 450 Compact

The Omniscan 450 Compact features a form factor supported by most small ROVs thus simplifying integration. Also featured is an internal Ethernet switch so that up to 2 additional Ethernet devices can be daisy chained while using only a single Ethernet connection to the vehicle.

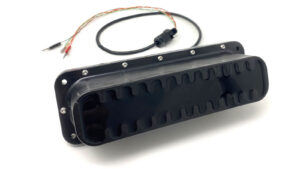

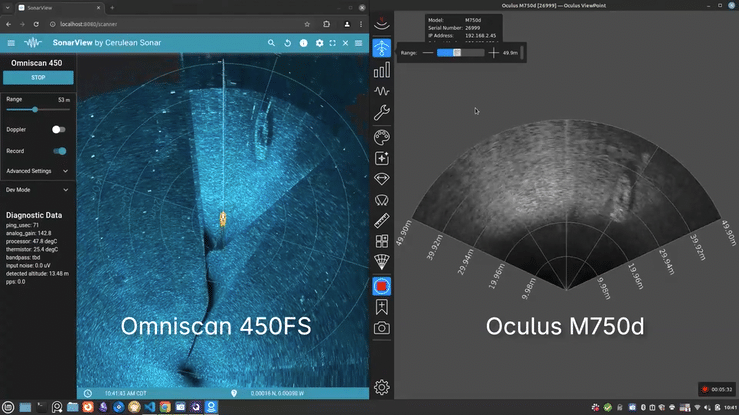

Omniscan 450 FS 100m & 300m

The Omniscan 450FS is ideally suited for forward looking ROV applications. The transducer and electronics are housed in a single enclosure with Ethernet + power interface. Two enclosure options are available for 100m or 300m depth rating.

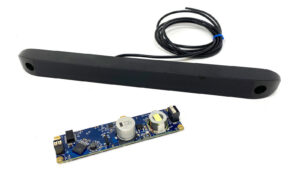

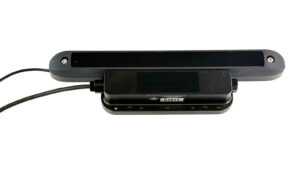

Omniscan 450 SS & 450 SS Blueboat

The Omniscan 450SS is tailored for side-scan applications. The longer transducer gives better along track resolution and longer range. For scanning both sides simultaneously, order quantity 2. Separate PCBA to be housed in vehicle water tight container.

Omniscan Specifications

450 Compact 450 FS 100m 450 FS 300m 450 SS
Price $2990 $2490 $2990 $2590
Frequency (nominal) 450 kHz 450 kHz 450 kHz 450 kHz
Range Resolution up to 1/1200th of range up to 1/1200th of range up to 1/1200th of range up to 1/1200th of range
Maximum Ping Rate 20 Hz 20 Hz 20 Hz 20 Hz
Power 10-30V, 10 watts max (pinging) 10-30V, 10 watts max (pinging) 10-30V, 10 watts max (pinging) 10-30V, 10 watts max (pinging)
Data Interface 100BaseT Ethernet 100BaseT Ethernet 100BaseT Ethernet 100BaseT Ethernet
Internal Ethernet Switch Yes No No No
Internal Electronics Yes Yes Yes No
Electrical Connection single cable w/4 pin JST for Ethernet data + 1 wire pair for power. Options for the 3 ports including Blue Trail bulkhead connector(s). single cable w/4 pin JST for Ethernet data + 1 wire pair for power single cable w/4 pin JST for Ethernet data + 1 wire pair for power PCB assembly has 3 position transducer interface, 4 pin JST for Ethernet interface, 2 pin JST for power.
Maximum Range 100m 100m 100m 150m
Beam Width (theoretical, degrees) 1.1 0.8 0.8 0.5
Beam Height (nominal, degrees) 50 50 50 50
Weight in Air 440g 825g 180g (transducer only)
Weight in Water -60g (buoyant) 325g -10g (Transducer only)
Max Operating Depth 300m 100m 300m 300m
